-Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
-3.2Gbps backplane bandwidth
-16*10/100Mbps TX adaptive ports
-Each 10M/100M port supports full-/half-duplex working mode
-2.38Mpps packet forwarding rate, automatic MDI/MDI-X line sequence crossover
-Automatic address learning and aging, 8K MAC address table
|
Product model |

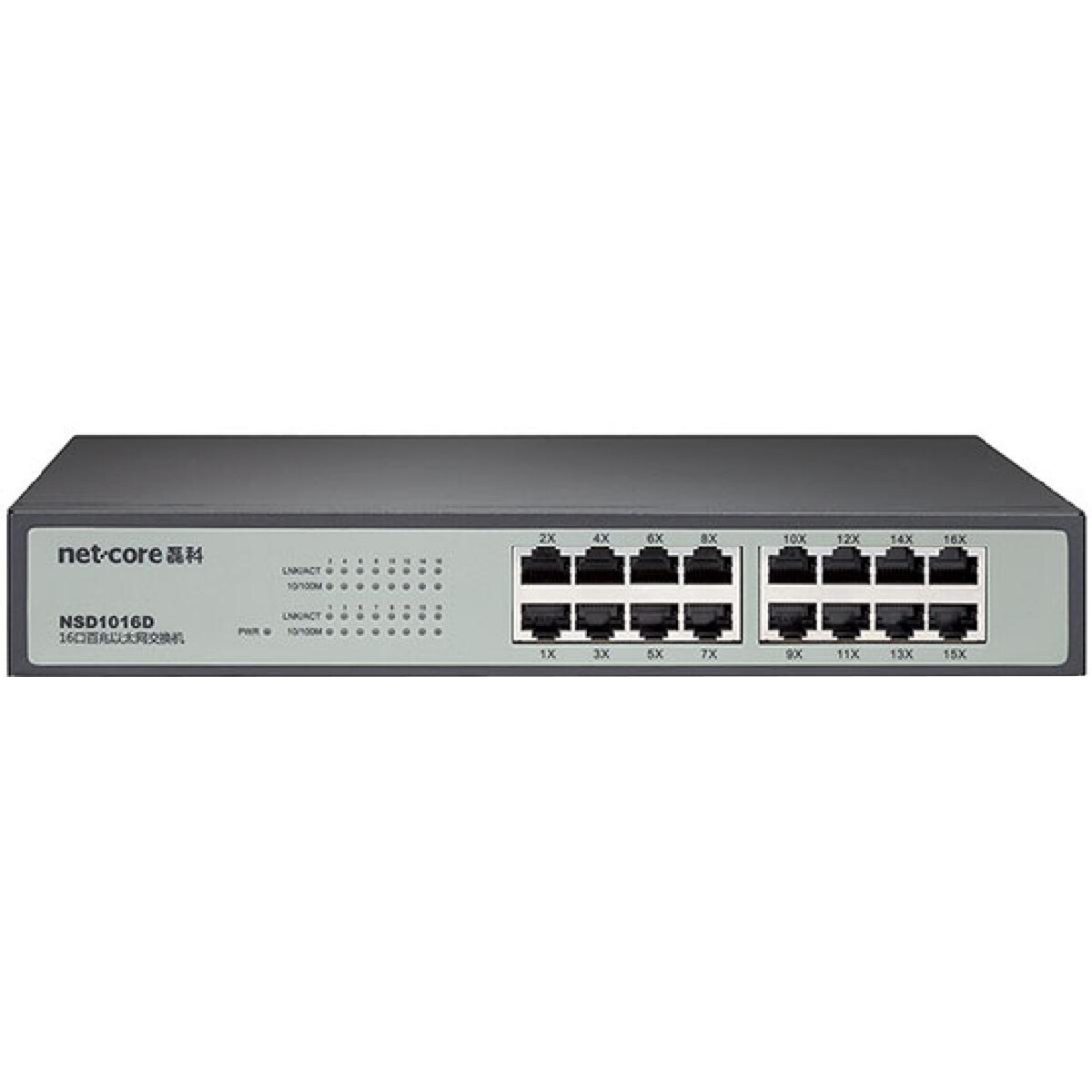

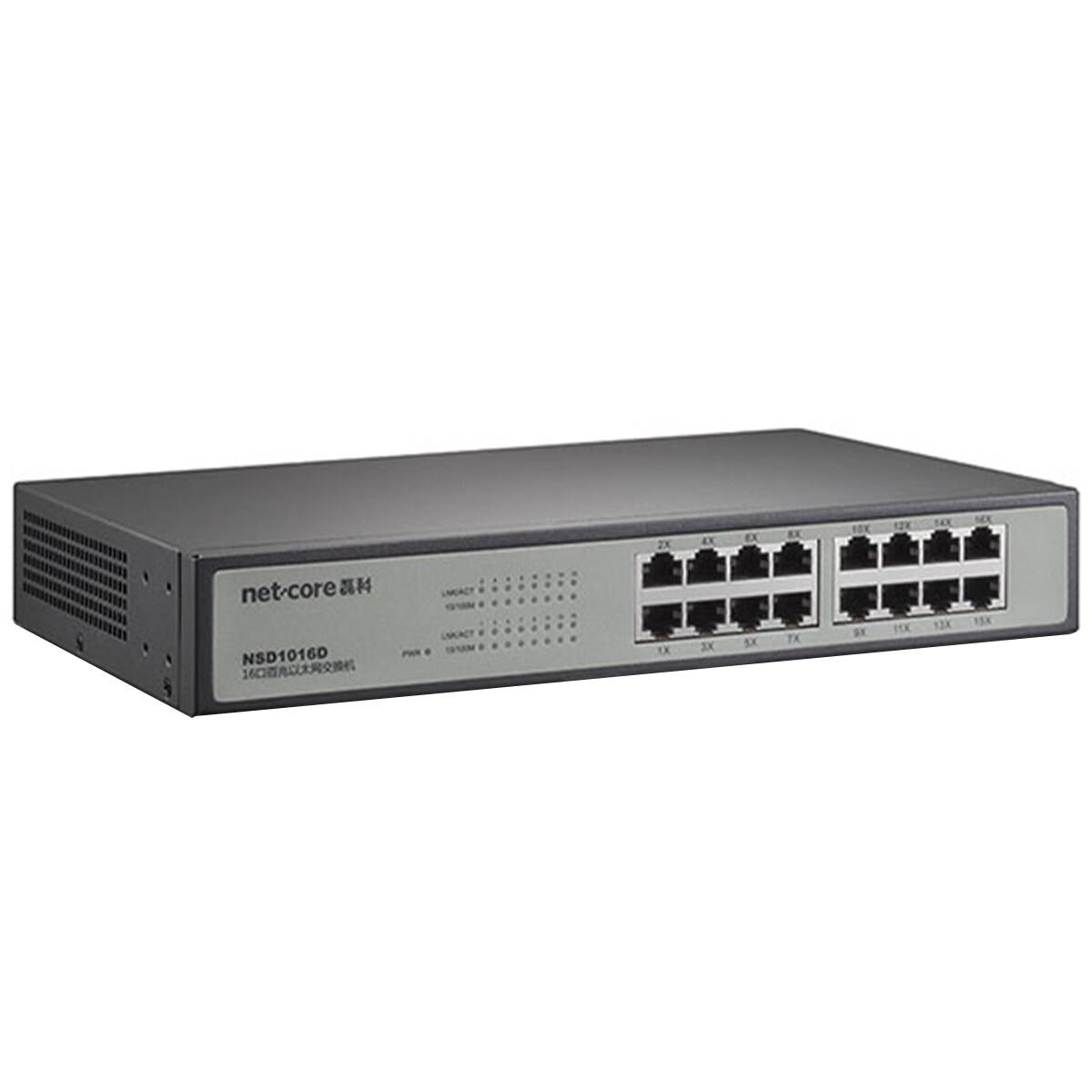

NSD1016D |
| Standard protocol | IEEE 802.3 、IEEE 802.3u 、IEEE 802.3x |
| Network medium |
10Base-T: CAT3 or above UTP 100Base-TX: CAT5 or above UTP |
| Port | 16*10/100M RJ45 LAN port |
| Forwarding rate | 10/100Mbps |
| Backplane bandwidth |
3.2Gbps |
| MAC address table | 8K |
| Size | 280 mm(L)* 173mm(W)* 44mm (H) |
| LED display | 10/100Mbps（LINK/ACT）、Power |
| Power | 100-240V AC，50/60Hz |
| Access method | CSMA/CD |
| Working environment |
Operating temperature: 0°C ~ 40°C Storage temperature: -20°C ~ 70°C Operating humidity: 10% ~ 90%, RH non-condensing Storage humidity: 5% ~ 90%, RH non-condensing |
