-Follow IEEE802.3 Ethernet and IEEE802.3u Fast Ethernet protocol standards
-1.6Gbps backplane bandwidth, eight 10/100Mbps TX adaptive ports
-All 10M/100M ports support full-/half-duplex working mode
-1.19Mpps packet forwarding rate, automatic MDI/MDI-X line sequence crossover
-Automatic address learning and aging, 2K MAC address space
|
Product model |

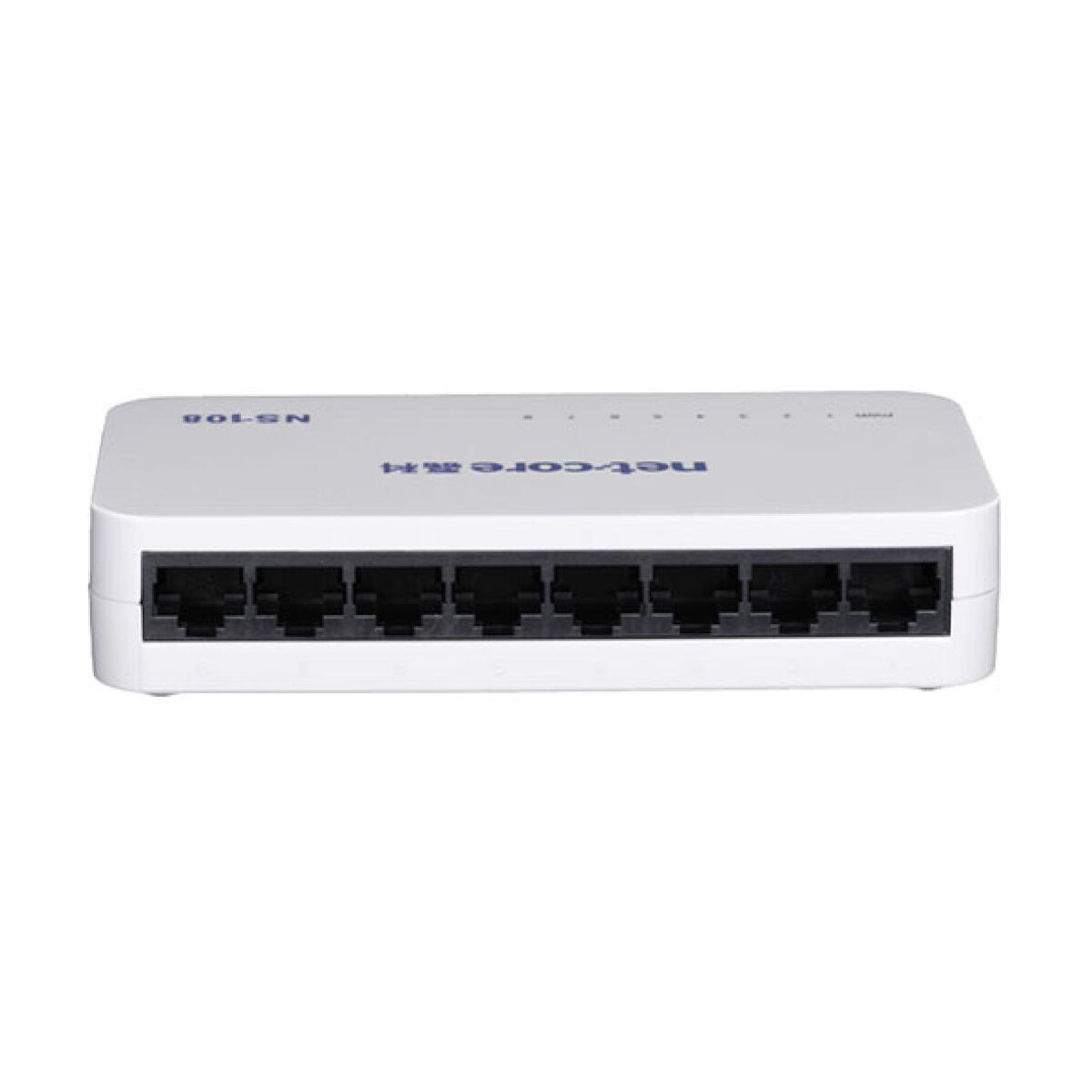

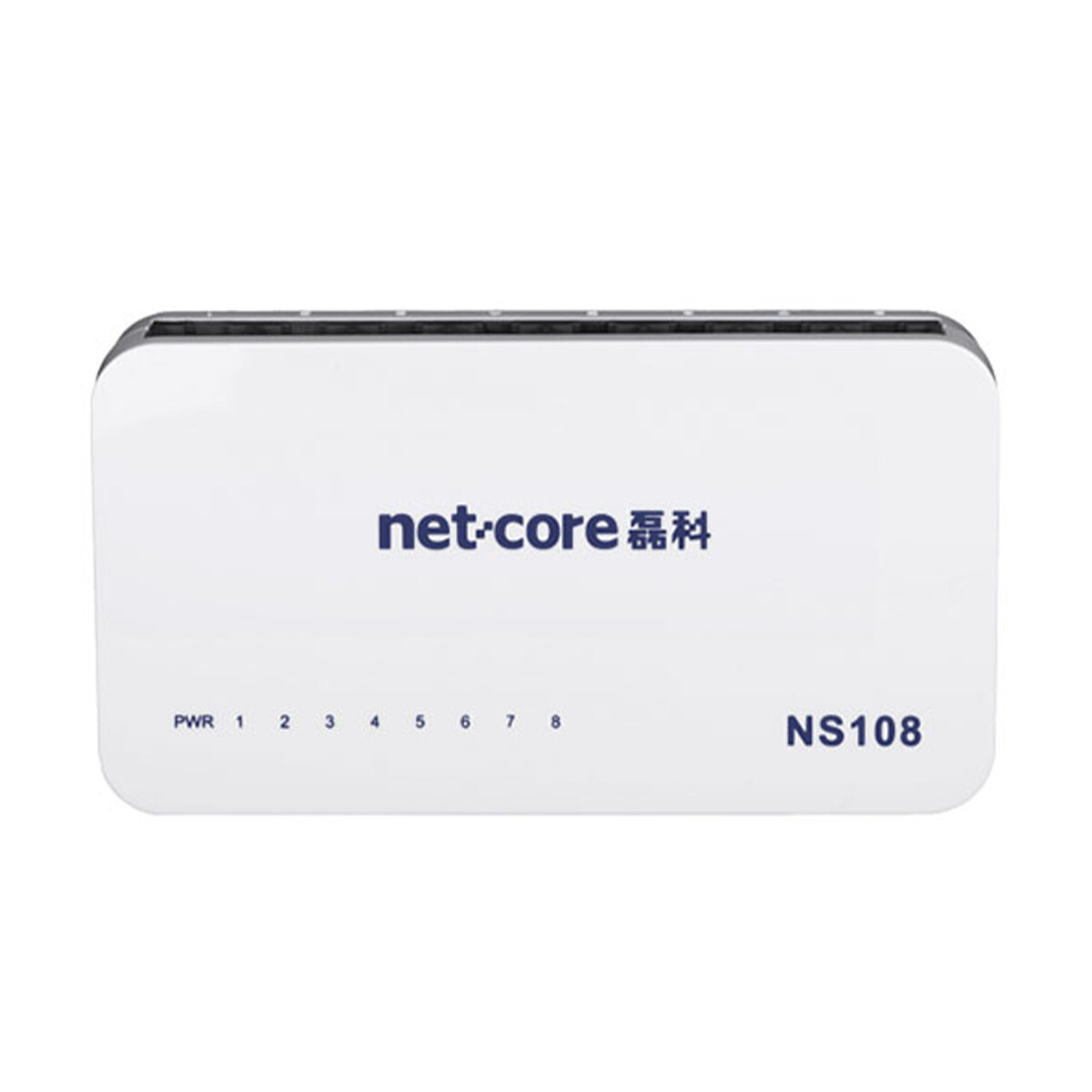

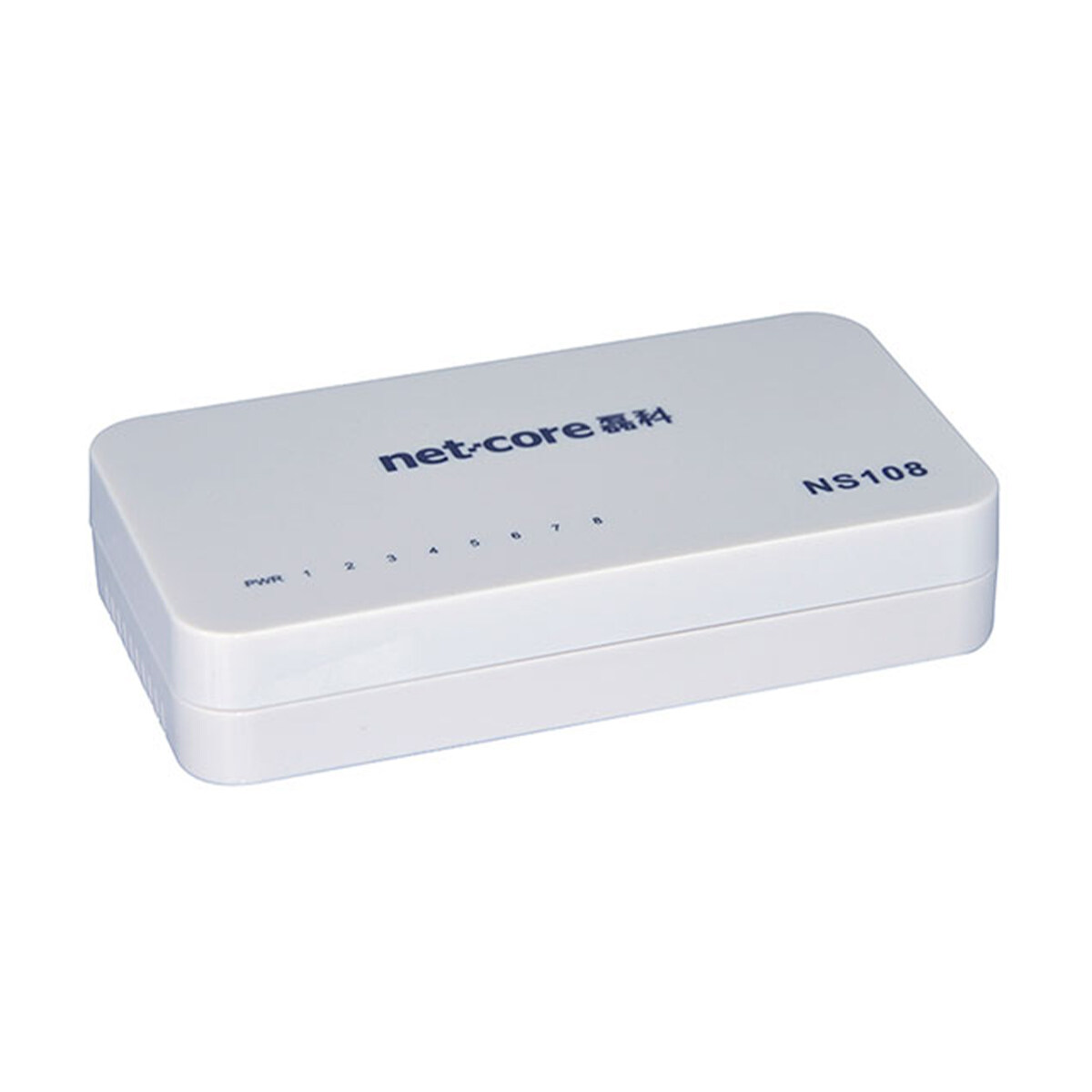

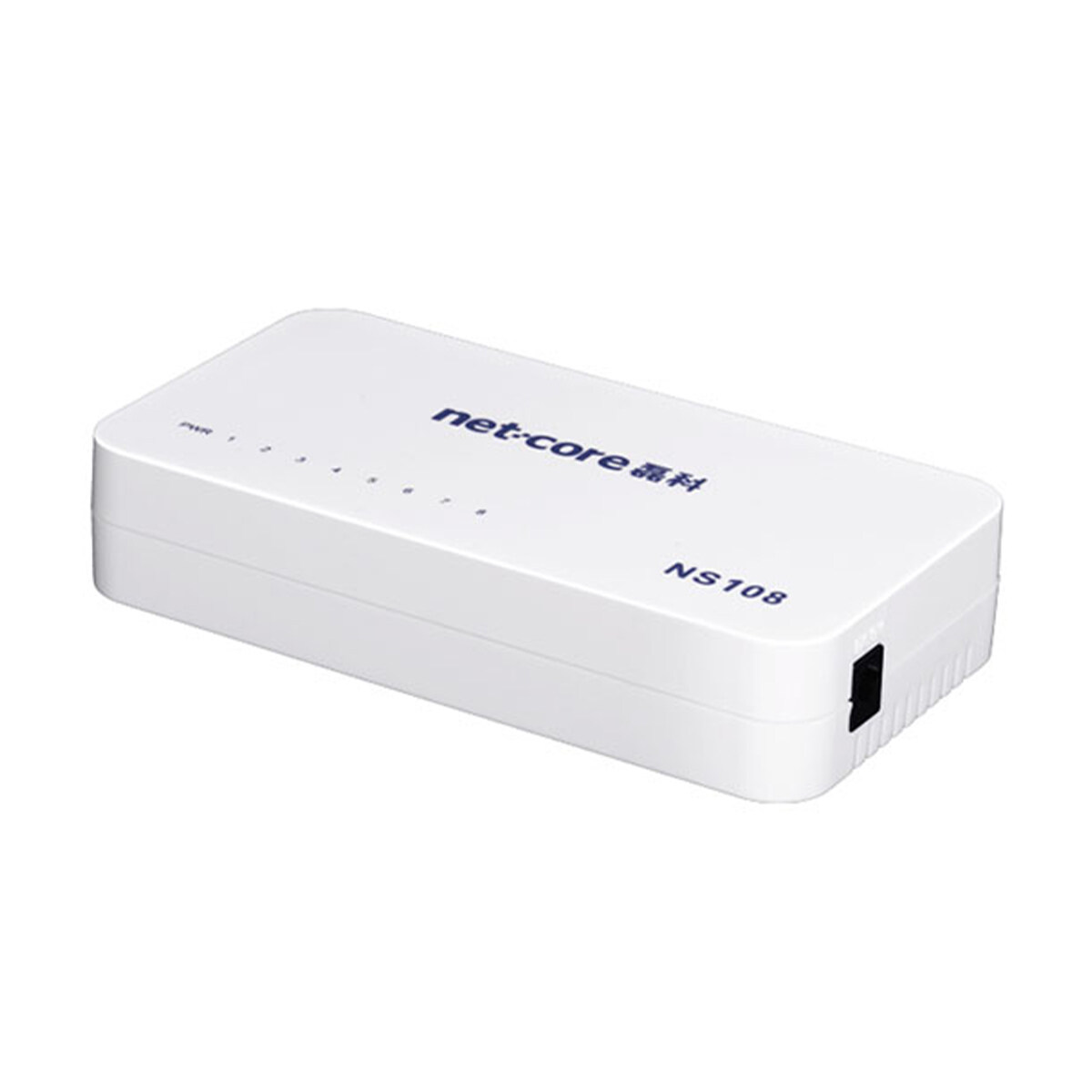

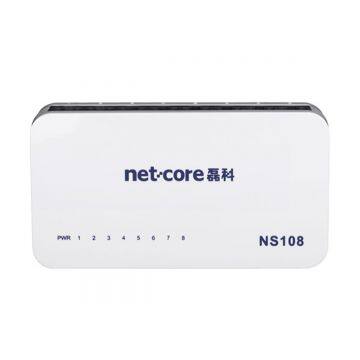

NS108 |
| Standard protocol | IEEE 802.3 10Base-T、IEEE 802.3u 100Base-TX |
| Network medium |
10Base-T: CAT3 or above UTP 100Base-TX: CAT5 or above UTP |
| Port | 8*10/100M RJ45 LAN port |
| Forwarding rate | 10/100Mbps |
| Backplane bandwidth |
1.6Gbps |
| MAC address table | 2K |
| Size | 130*70*26mm（L*W*H） |
| LED display | 10/100Mbps（LINK/ACT）、Power |
| Power | DC 9V/500mA |
| Working environment |
Operating temperature: 0°C ~ 40°C Storage temperature: -20°C ~ 70°C Operating humidity: 10% ~ 90%, RH non-condensing Storage humidity: 5% ~ 90%, RH non-condensing |
